Streamlined connectivity
Enjoy the convenience of a user-friendly one-button learning feature for seamless connectivity, easily identify the optimal device placement during installation using SSI, and achieve efficient power management with ITDC.
Fully tamper protected
With lid, base, and power tamper protection, any attempts to disable the bell will trigger an alert.
Weatherproof
Polycarbonate plastics offer a weather resistant housing with an elegant design.
Levelling mechanism
The unique levelling mechanism incorporates a built-in spirit level and four rotating dogs to assist in ensuring the bell is perfectly level during installation.
Cut-off timer
To comply with industry noise pollution regulations, the bell will automatically cease ringing after 15 minutes, even if the alarm panel remains activated. After 15 minutes, the strobe will continue to flash until the system resets.
Engineer hold off facility
When first powered with the tamper switch open, the sounder will not activate. Once the tamper switch has been closed, the lid and back tamper become operational.

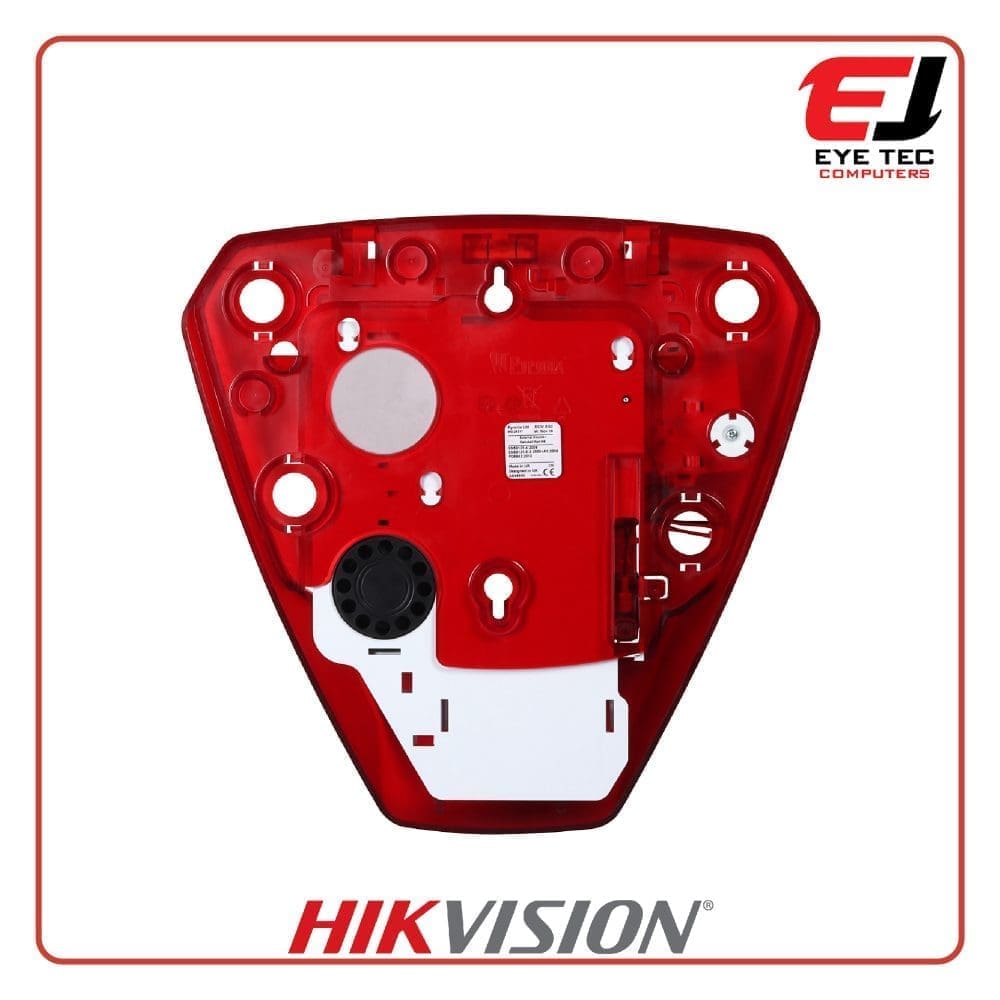

Deltabell-WE updated with 4x CR123A batteries
Opting for standard CR123A batteries instead of custom-designed ones ensures convenient future access and replacement. Our Varta CR123A multipacks, accessible through distribution channels, facilitate easy procurement for a hassle-free battery replacement experience.
Sounders technical characteristics
Loudness | 100 dB(A) @ 1m |
Optional comfort LED | 1 |
Sound and light indication on alarm | Yes |
Engineer hold off | Yes |
Flashing LED | Yes |
Comfort LED | Yes |
Back-lit | No |
Tamper protection | Yes |
Strobe duration and frequency | 10ms, 1Hz |
Sounder maximum duration | 15 mins |
SAC (self actuating bell) / SAB (self activating bell) option | Yes |
Self levelling | Yes |
Enforcer two-way wireless technology
Signal Strength Indicators (SSI) | Yes |
Instant two way device control (ITDC) | Yes |
Pyronix high security two way wireless data encryption protocol (TDE) | Yes |
Pyronix intelligent jamming detection | Yes |
Programmable wireless supervision time | Yes |
868MHz transceiver FM technology | Yes |
One push to learn | Yes |
Transmission range | 300m in open space |
Communications and modems
Supports PyronixCloud & ProControl+ App | If used with ProControl+ Panel (UK) or Enforcer 32-WE App (Export) |
Environmental and operating features
Certified operating temperature | -25°C to 60°C |
Nominal operating temperature | -30°C to 60°C |
Physical dimensions (H x W x D) | 290 x 285 x 50 mm |
Electrical & battery
Battery type | 4 x CR123A |
Battery life | Up to 2 Years |
Battery low voltage protection | Yes |
Operating voltage | 9-16V |
Certifications and warranty
Security Grade | Grade 2 |
Environmental class | IV |
EN Certificate | EN 50131-5-3: 2005 + A1: 2008 EN 50130-4: 1995 + A1: 1998 + A2: 2003 EN 61000-6-3: 2007 |
Certification type | IMQ |
Certificate number | CA12.01330 |
Electrical conformity | CE and UKCA |
Warranty | 1 Year |
