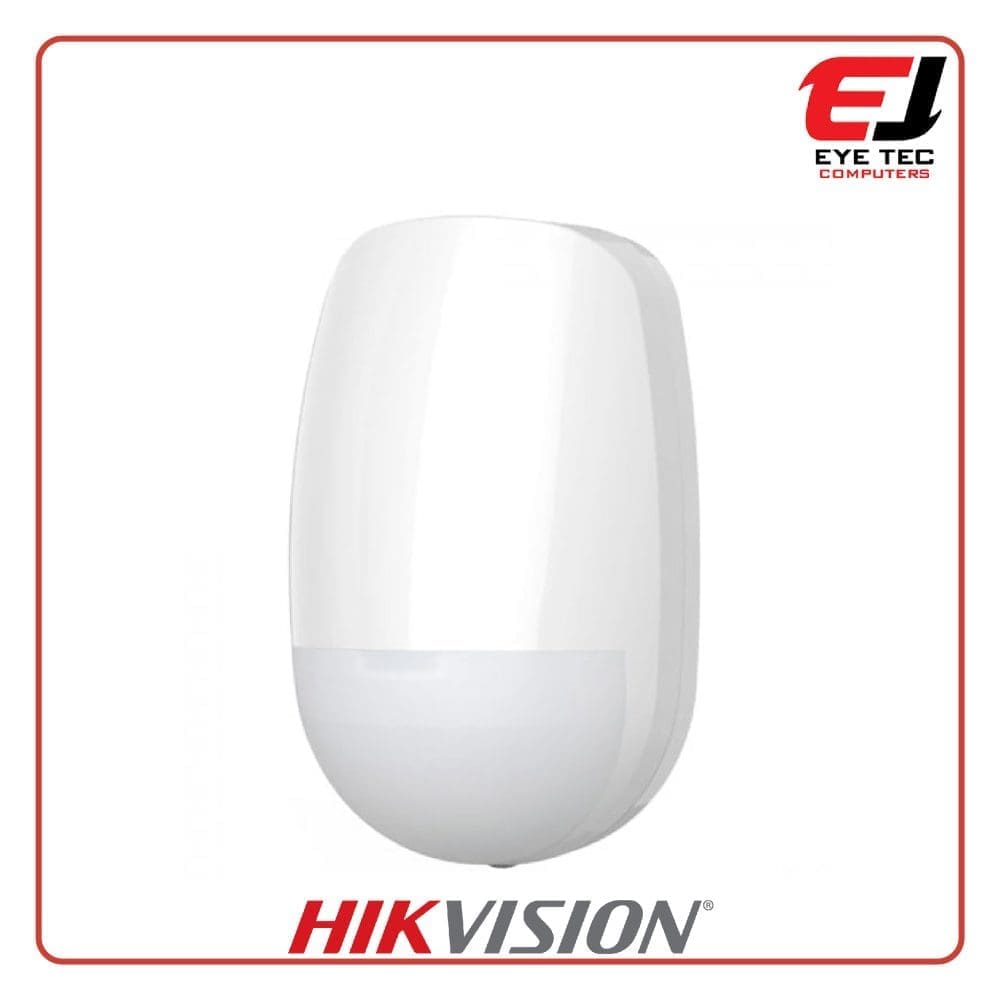

| Detection Method | Passive Infrared |
| Detection Range | 15m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3~2m/s |
| Sensitivity | High; Auto; Pet |
| Pet Immunity | 30Kg |
| White Light Filter | 6500lux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front; Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Power Switch | Power Up Enrolling |
| LED Indicator | Blue (Alarm) |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Range(Free Space) | 1.6Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up; Remote ID; QR Code |
| Standard Battery Life | Up to 5 years (standby time) |
| Power Supply | Battery Powered |

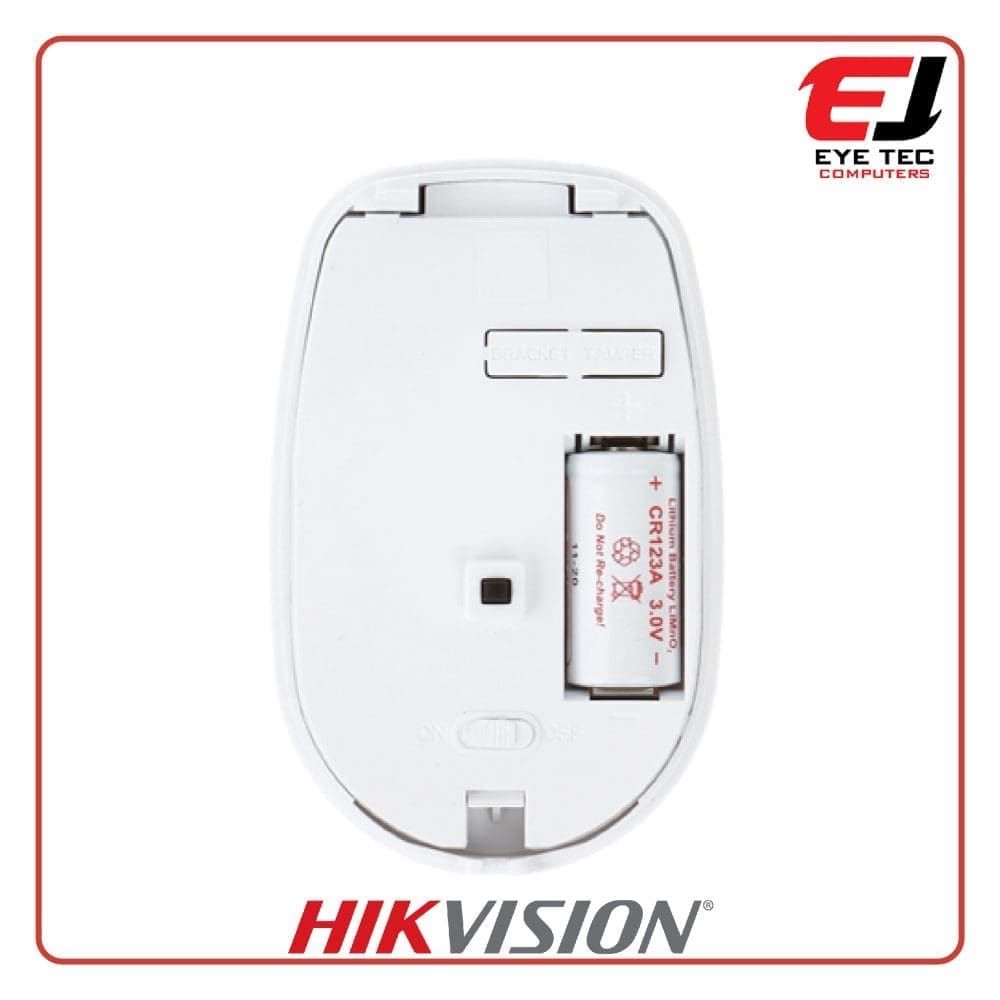

| Battery Type | CR123A × 1 |
| Typical Voltage | 3V |
| Operation Temperature | -10°C to 55°C (14 °F to 131 °F) |
| Storage Temperature | -20°C to 60°C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 65.5 mm × 103 mm × 48.5 mm |
| Weight (Without Package) | 128 g |
| Mounting Height | 1.8 m to 2.4 m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
